Maximize Energy Yield. Simple Seasonal Adjustment.

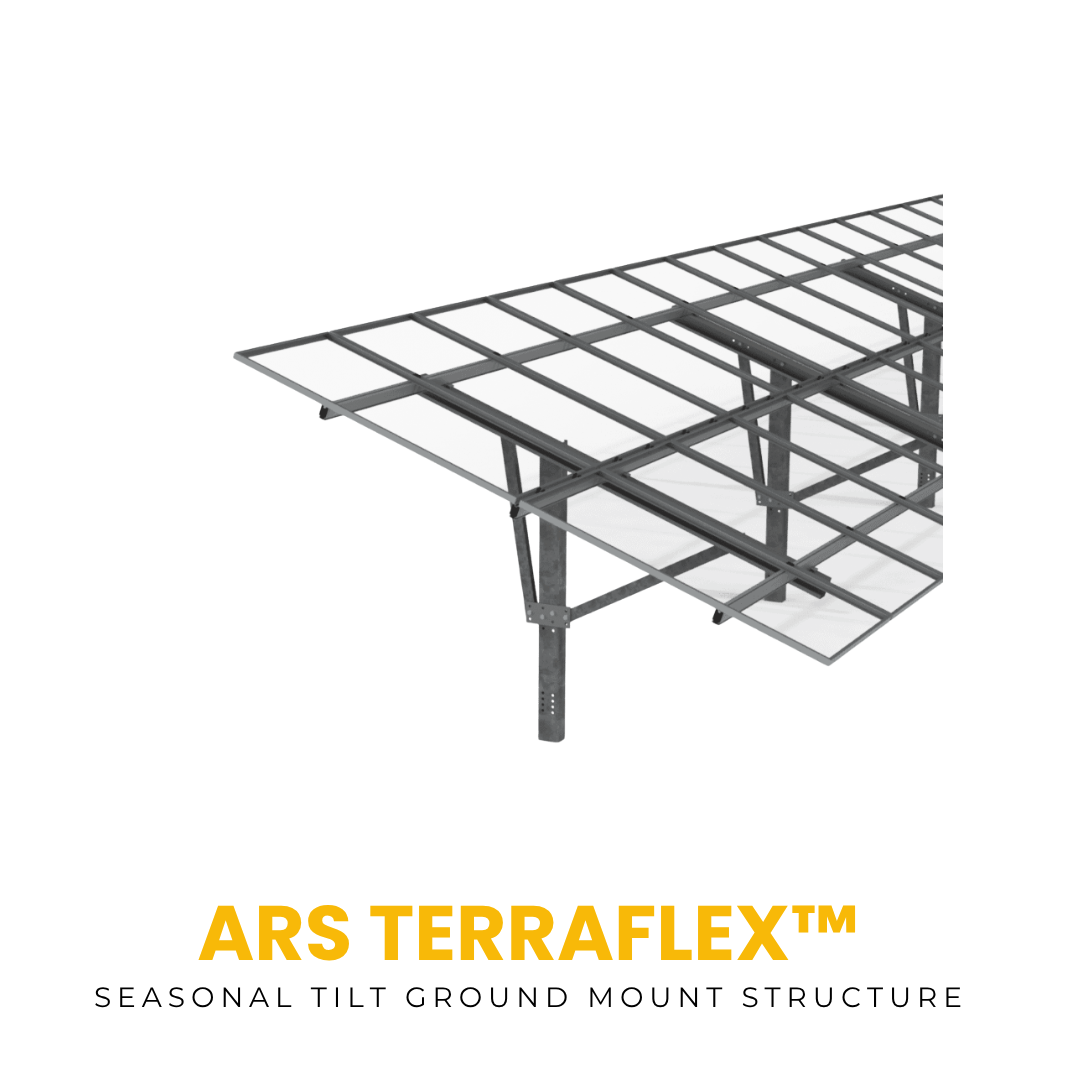

Seasonal Tilt Structure
The Seasonal Tilt structure is a smart, cost-efficient mounting solution designed to optimize solar energy generation throughout the year. With easy manual tilt adjustment, it helps you capture more irradiation across seasons, delivering up to 8% higher annual output, depending on your location.
solar ground mounting structure India
solar ground mounting structure India
Adjust with the Seasons
Manual tilt adjustment lets you align panels for optimal sunlight year-round — boosting overall energy generation. Manual tilt adjustment 2–3 times/year for higher yield
Up to 8% More Energy
A cost-effective way to enhance performance by capturing more solar irradiation across changing seasons.
solar mounting structure with manual tilt Boost generation
Why Choose Seasonal tilt structures
Tilt Adjustable for Maximum Solar Gain
Allows quick, simple angle adjustments between 0° to 75°, letting your system align with the sun’s changing position through the year. Typical seasonal adjustments are performed two or more times annually
Faster O&M, Lower Costs Fast Adjustment
Adjust an entire array of about 20 modules in under 90 seconds thanks to a streamlined mechanical design. Reduces ongoing operational expenses, making it one of the most efficient and O&M-friendly systems.
Versatile Deployment Seasonal Tilt
Suitable for both RCC flat roofs and ground-mounted sites. Modular layout enables easy scaling, whether for small rooftop projects or large field installations. Used for large industrial yards and utility-scale fields
Key Advantages
-
Boost Output by Up to 8%
Seasonal tilt optimization increases yearly power generation, improving project ROI. -
Modular, Scalable Design
Flexible table sizes — 3P, 4P, rows — adapt to site dimensions and future capacity expansions. -
Built-In Protection
Integrated locking and safeguard mechanisms protect structural integrity during adjustments. -
Quick Installation and Adjustment
Modular assembly minimizes on-site construction time, and the manual adjustment requires minimal too
Technical Specifications
|
Parameter
|
Details
|
|---|---|
|
Application
|
RCC flat roof and ground mount systems
|
|
Module Orientation
|
One-row and two-row portrait
|
|
Table Sizes
|
3P, 4P, 5P, 6P per row
|
|
Wind Load Design
|
150–180 km/h
|
|
Material and Build
|
Hot-dip galvanized steel, GPSP
|
|
Adjustment Speed
|
Less than 90 seconds for ~20 modules
|
Ideal Applications
- Utility-scale solar farms
- Agro-photovoltaic systems
- Open ground projects in diverse geographies
- Sites aiming to enhance yield without costly automated trackers
Increase Energy. Reduce Costs. Optimize with ARS Solartech
With ARS Solartech, solar mounting company India you get a practical, long-life solution to push your solar generation higher without the complexity and maintenance of full tracking systems. It’s a straightforward path to improving returns, keeping your system simple, robust, and operator-friendly.
