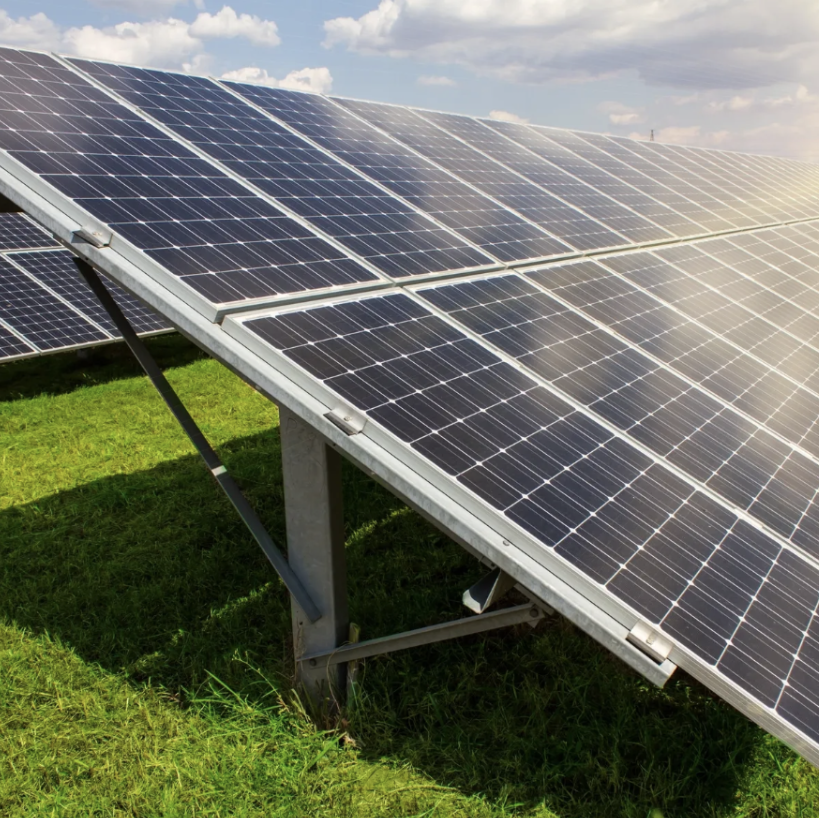

Ground Mount Solar Racking Systems
ARS Solartech’s ground mount structures offer a scalable solution for large-scale solar installations. With precision-engineered steel framing and customizable tilt, these systems maximize energy capture across diverse terrains, delivering long-term reliability for commercial and utility-grade projects.
Built for Scale and Strength
Engineered steel frames with adjustable tilt ensure maximum energy capture across varied landscapes.
Reliable for Every Terrain
Scalable and customizable, ideal for commercial fields and utility-scale solar farms with long-term durability.
Why Choose TerraFix™ – Ground Mount (Fixed Tilt)

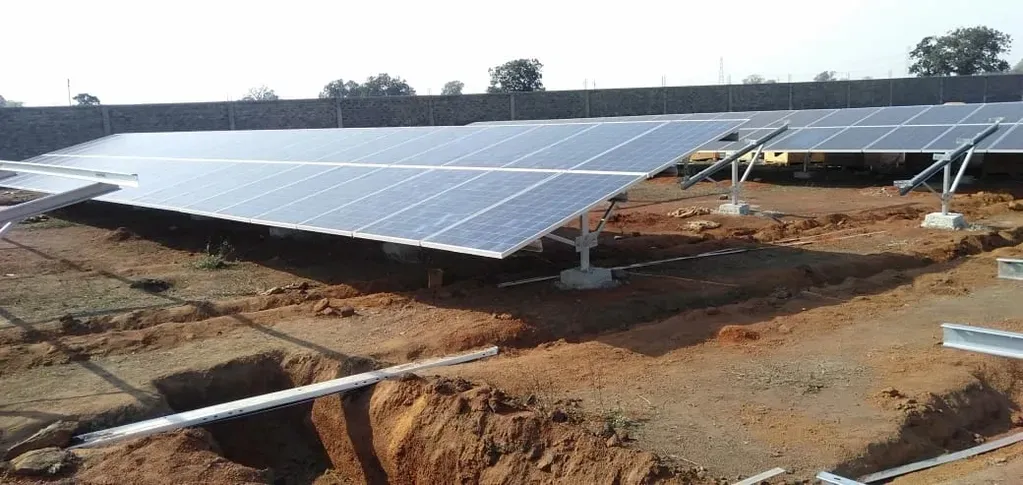

FIxed Tilt Solar ground mount structure
Robust fix Tilt structure structure for large scale gorund mount project made up withms IS 2026 HDG and Galvalume material for econoimical solution
Modular Structure for easy installation
simple modular structure makes it easy for installation and transportation fast assembly and saving labour cost height and Tilt can be adjusted with least modifications
Suitable for Bi Facial module
Same structures can be accommodated for Bifacial modules with changes in purlins and rafter sections gain maximum energy with economical solution
Why Choose ARS Ground Mount Systems?
Robust & Adaptable Design
- Engineered with C&Z structural members, delivering the strength to withstand demanding site conditions and wind speeds up to 200 km/h.
- Designed for a variety of foundations — pile-driven, rammed, or RCC pedestal — to suit your ground conditions and budget.
Optimized Energy Yield
- Adjustable tilt from 5° to 35° ensures the optimal angle for sunlight exposure across seasons and latitudes.
- Elevated clearance from 350 to 1500 mm eliminates shading from parapets or small obstructions.
Faster Installation
- All modular framing simplifies logistics and on-site work, reducing installation time and labor costs.
- Smart layout minimizes alignment issues, streamlining commissioning.
Long-Lasting Value
- Manufactured with hot-dip galvanized steel and GPSP, tested for corrosion resistance under rigorous standards.
- Backed by a 10-year warranty with an expected 25-year service life, protecting your investment over the long term.
Technical Specifications
|
Parameter
|
Details
|
|---|---|
|
Application
|
Ground mount solar racking
|
|
Module Size (L x W)
|
1559–1982 mm x 950–1050 mm
|
|
System Size
|
Min. double module row (2PX10)
|
|
Structure Weight
|
8–14 kg per panel
|
|
Structural Members
|
Min. 80CS40 X 1.2–2 mm THK
|
|
Material
|
Hot-dip galvanized steel, GPSP
|
|
Material Specs
|
Pre-Galv. MS: 250 GSM; Post-Galv.: 80–120 μ
|
|
Yield Strength
|
250–540 MPa
|
|
Foundation Type
|
Pile / Rammed / RCC pedestal
|
|
Wind Speed Design
|
Up to 200 km/h
|
|
Wind Testing
|
Simulated via Autodesk Flow & STAAD Pro
|
Engineered for Long-Term Project Success
From precise tilt adjustments to modular frames that cut installation timelines, ARS Solartech’s ground mount systems are designed to help developers and EPCs meet tight project schedules while delivering dependable, high-yield performance for decades.
