ALUMINIUM SOLAR STRUCTURES
Lightweight. Corrosion-Resistant. Precision-Engineered.
ARS SolarTech’s range of aluminium mounting structures is designed for rooftops where weight, ease of installation, and long-term corrosion resistance matter. Made from anodized extruded aluminium, these structures are compatible with most framed solar modules and suited for both residential and commercial rooftops.
Alumnium Short Rails
Types – Microrail Of Height 40/60/65/80/100/150 mm
Material – Alumnium 6063-T6
Application –Trapezoidal and corrugated sheet metal
Fastening- Riveted or screwed onto base structure (purlins)
Module orientation – Landscape/portrait

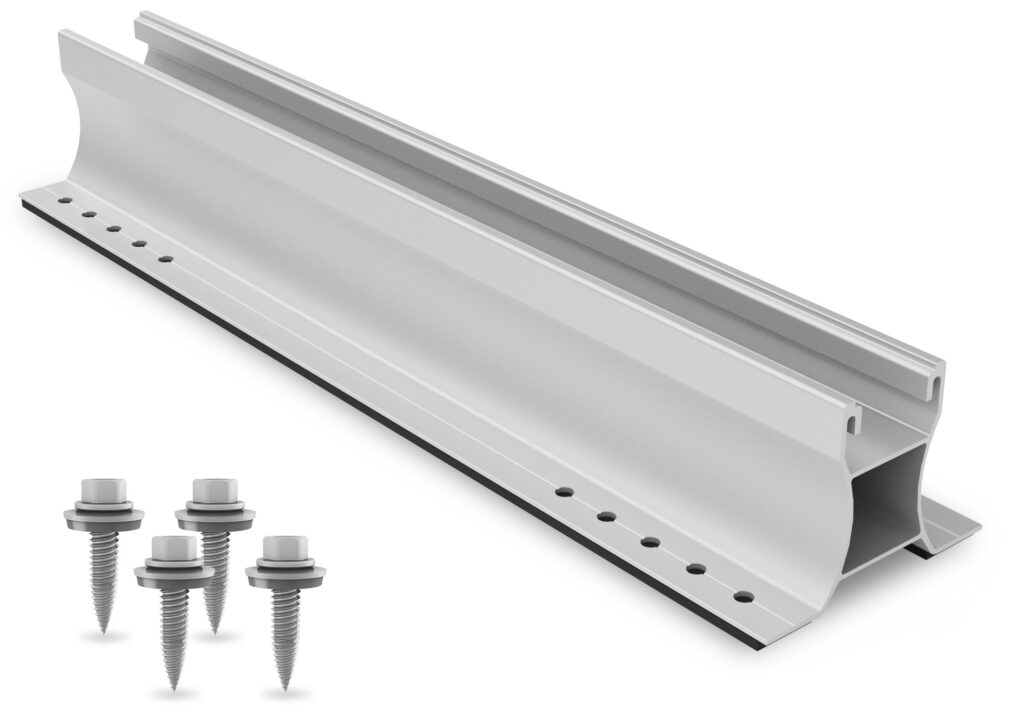

Alumnium Micro Rails
Types – Microrail Of Height 40/60/65/80/100/150 mm
Material – Alumnium 6063-T6
Application –Trapezoidal and corrugated sheet metal
Fastening- Riveted or screwed onto base structure adhesive based (purlins)
Module orientation – Landscape/portrait

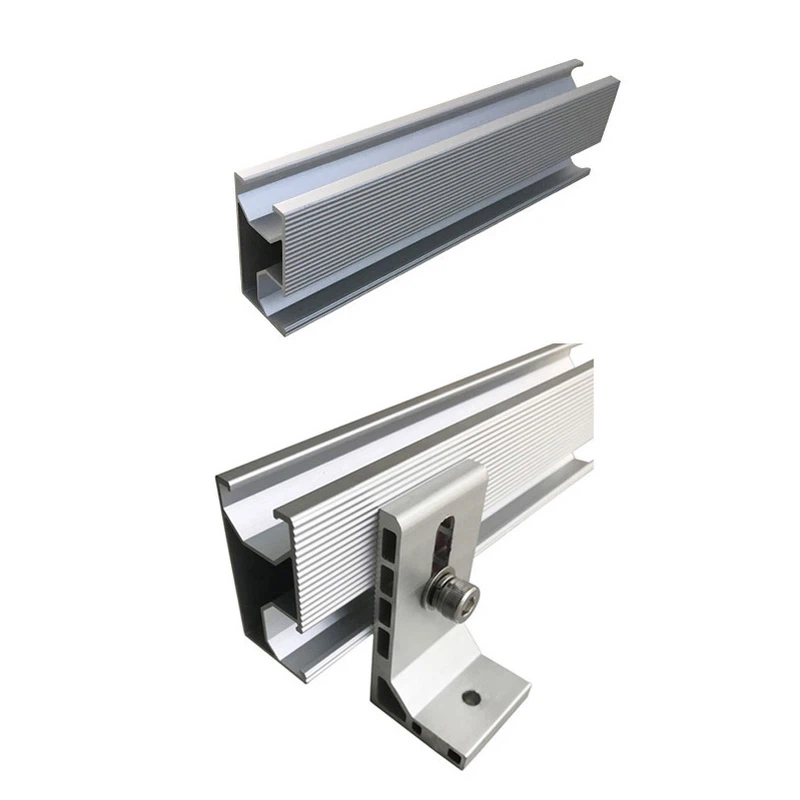

Alumnium Full Rail System
Types – Full rail system Height 100/150 mm
Material – Alumnium 6063-T6
Application –Trapezoidal and corrugated sheet metal
Module orientation – Landscape
L clamps are used for fixing Rails on Tin roof taking support of Base Purlins
Aliumnium 6063 T6 grade full rail system is very robust solar module mounting solution for industrial roof capable of taking heady loads
E-W/ North Facing Roof Opt-Tilt Structure
Opt-tilt structure can be used on tin or sloped roof of E – W facing roofs to give additional tilt towards South. Modular structure suitable for any system size
Best Alignment on Tin roof Hazel free Installation Due to Modular design and Minimum no of components Alignment of modules will be maintained
Max Yield from Additional Tilt
Gives additional south Tilt on North Facing Roof. Fats installation with minimum Tools required
Robust Structure
Maximum Contact with Base Structure makes it Robust solution in high winds. Includes of only three no of Parts and fasteners.Marine grade lightweight aluminium

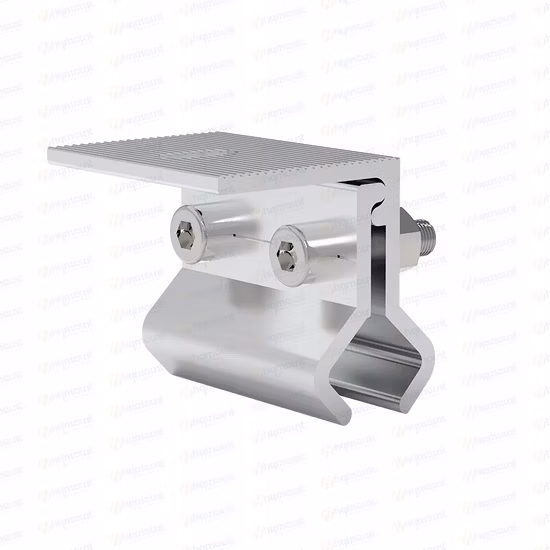

Standing Seam Clamps
we also provides Clip-lock Clamps for standing seam roof sheet. with verity of Clamping solution Available Aluminum Solar Mounting Rails
standing seam clamps
Kalzip roof clamps
Clip lock clamps
other accessories for utility installations such as walkways and safety railings

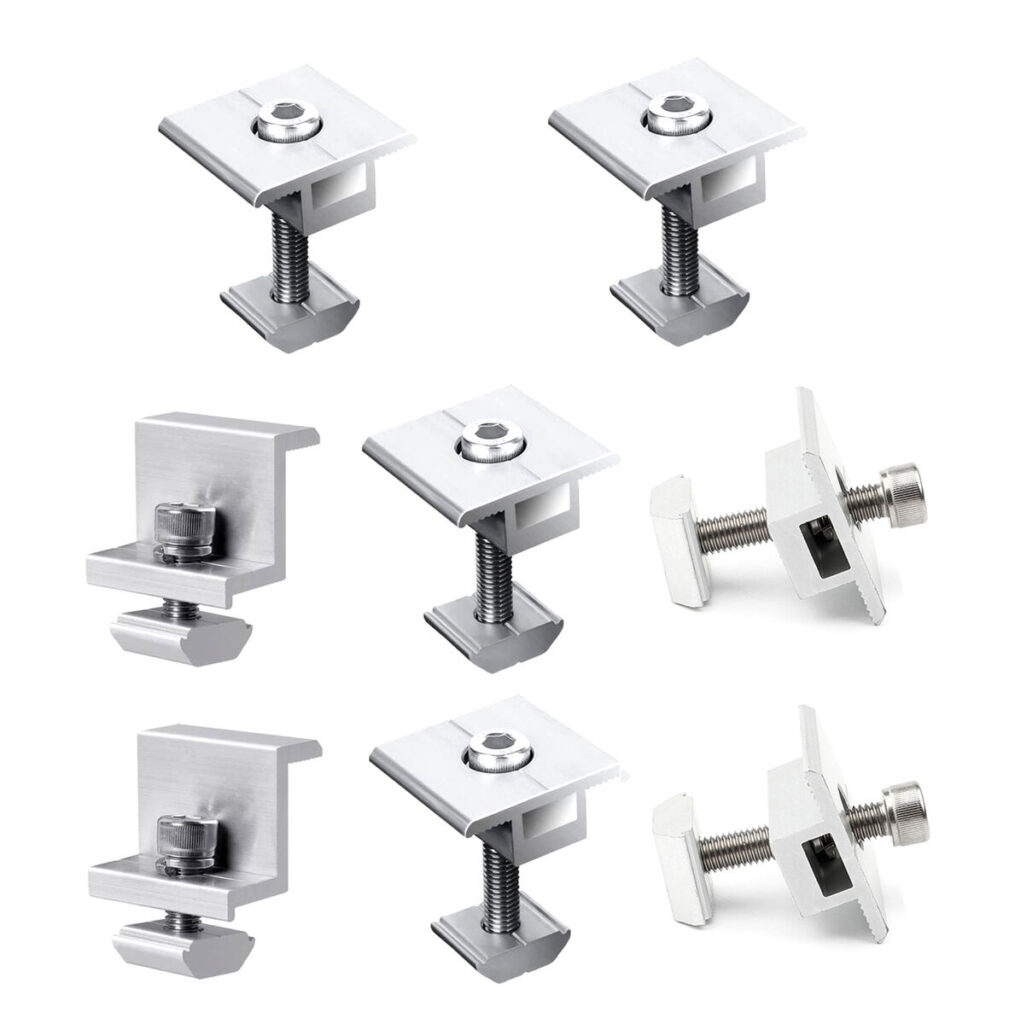

Alumnium Accessories
Types – Mid Clamps or End Clamps 30/35/40 mm
Material – Alumnium 6063-T6
Application -Trapeze microrail structures
Fastening- Allen bolts and nuts
Module orientation – Landscape/portrait
Wire Management: Cable clips, conduits, wire ducts
Add-On Solutions for Safety & Functionality

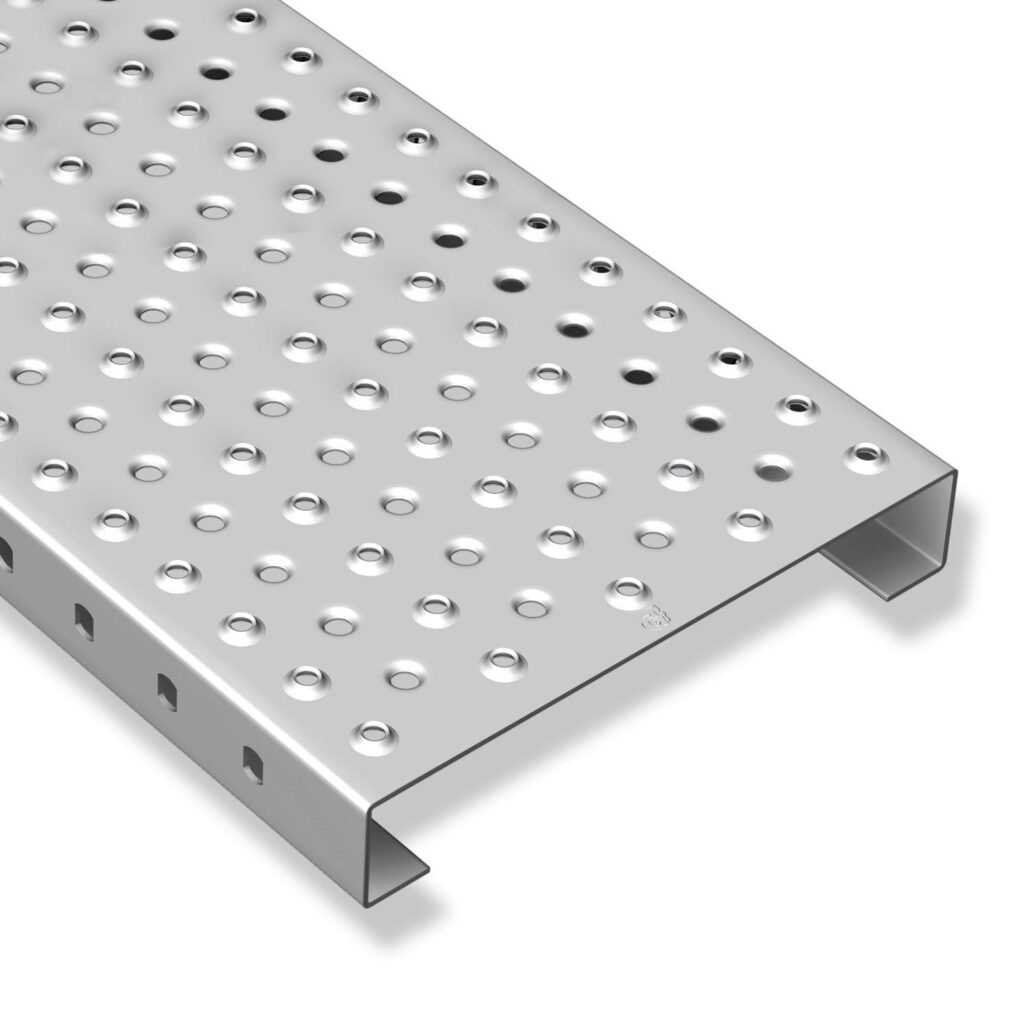

GI or FRP Walkways
For safe O&M movement across roofs
Anti-skid surface
Compatible with rapid rail profiles
Sizes – 300/350/ 400mm or customised as per requirement
Material – GI / HDG / R / FRP / Galvalume
All walkways for Flush type and tilted with fixing Clamps available

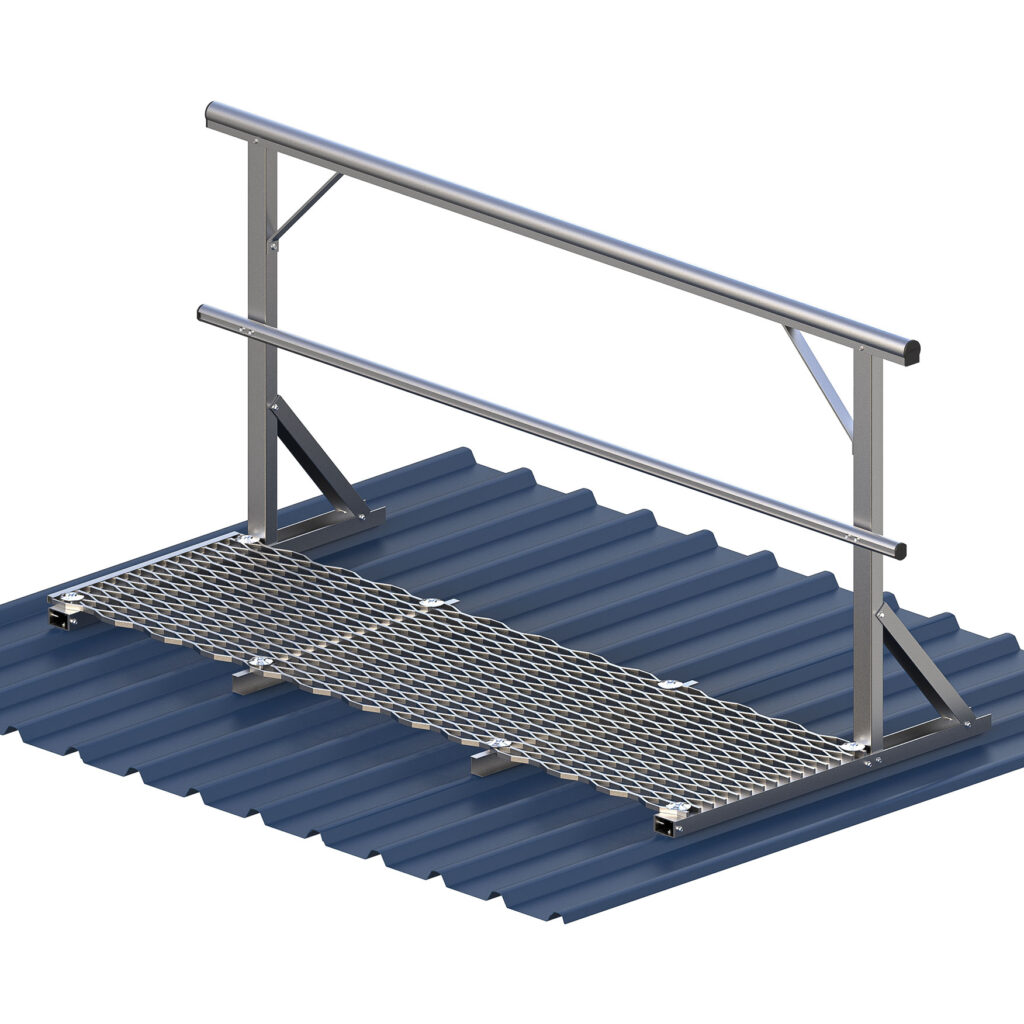

Safety Railing / fall Protection
For safe O&M movement across roofs
Perimeter protection around roof area
Easy clamping with mounting base
Compatible with rapid rail profiles
Sizes – 1m and above height customised as per requirement
Material – GI / HDG / R / FRP / Galvalume
All hand Railings for Flush type and tilted with fixing Clamps available

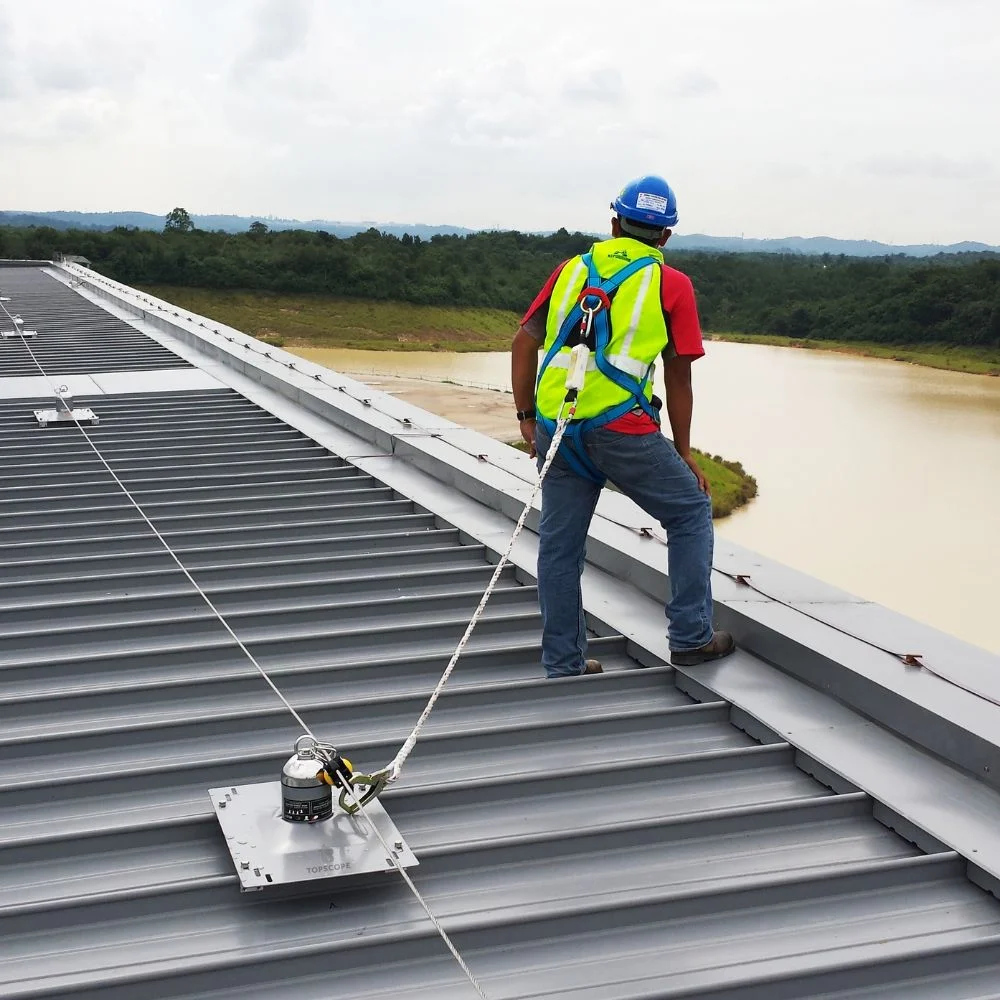

Safety Lifeline
Lifeline Systems
Overhead or horizontal lifelines for rooftop access
SS cable-based lifeline with shock absorbers
Fixed anchor points certified as per safety codes
Structure Codes: IS 800, IS 2062, IS 4759
solar structure manufacturer, RCC solar mounting, solar carport design, leakproof rooftop structure, bifacial module structure, aluminium rail solar frame, EV canopy India, solar pergola and tree, ballast solar mount, STAAD-Pro solar structure

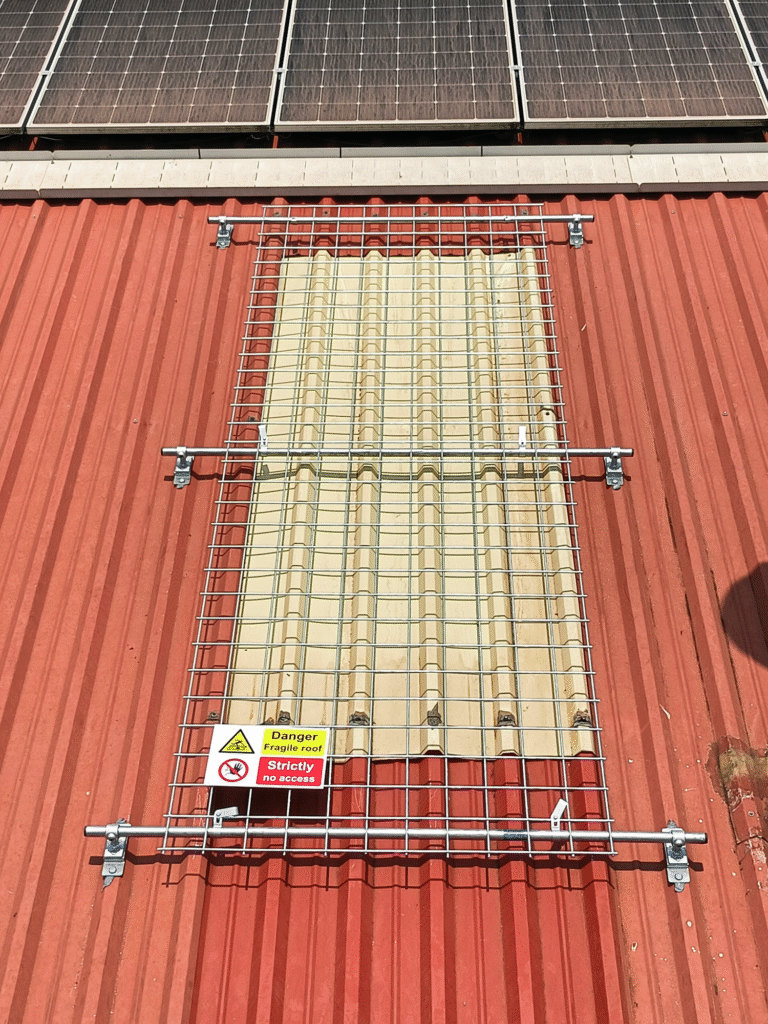

Skylight Protection Frames
Aluminium or GI mesh guard over skylight zones
Prevents accidental fall-through during O&M work
Modular and custom-sized to skylight layout
Factories, warehouses, and sheds with skylight strips
Sites with elevated or edge-exposed installations
Locations requiring annual O&M or frequent access
Finish: HDG (80 microns), Pre-GI, Aluminium
Wind Design: IS 875 Part-3, up to 180 kmph
Structure Codes: IS 800, IS 2062, IS 4759
Why Choose ARS ALUMINIUM STRUCTURES?
Lightweight Yet Strong – Easier to handle, ideal for low-load roofs
Rust-Proof & Maintenance-Free – Anodized aluminium finish for long life
Quick Installation – Pre-punched, modular rail sets reduce time on-site
Universal Compatibility – Fits 30mm to 50mm framed PV modules
Ideal For – Metal sheds, industrial sheds, and residential terraces
